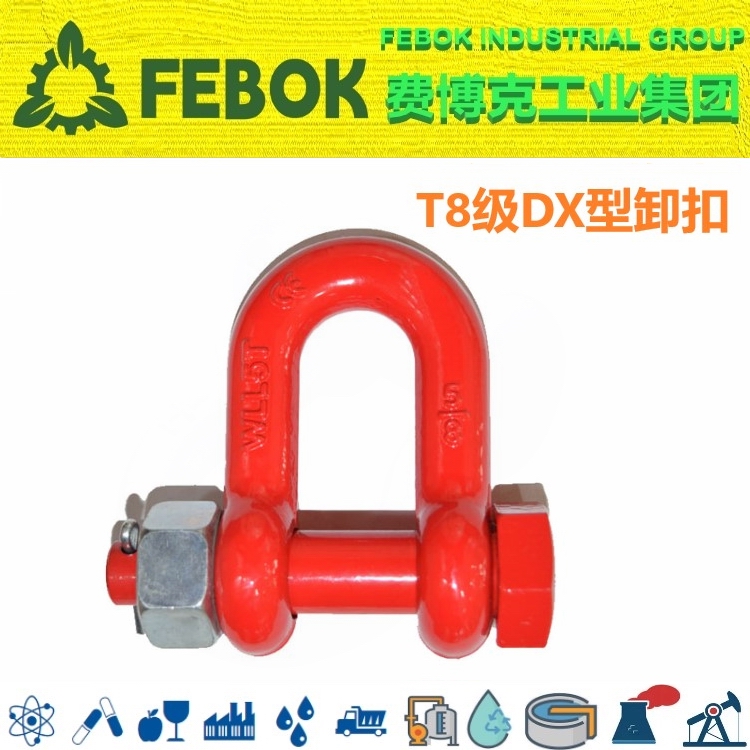

进口T8级合金钢DX型卸扣

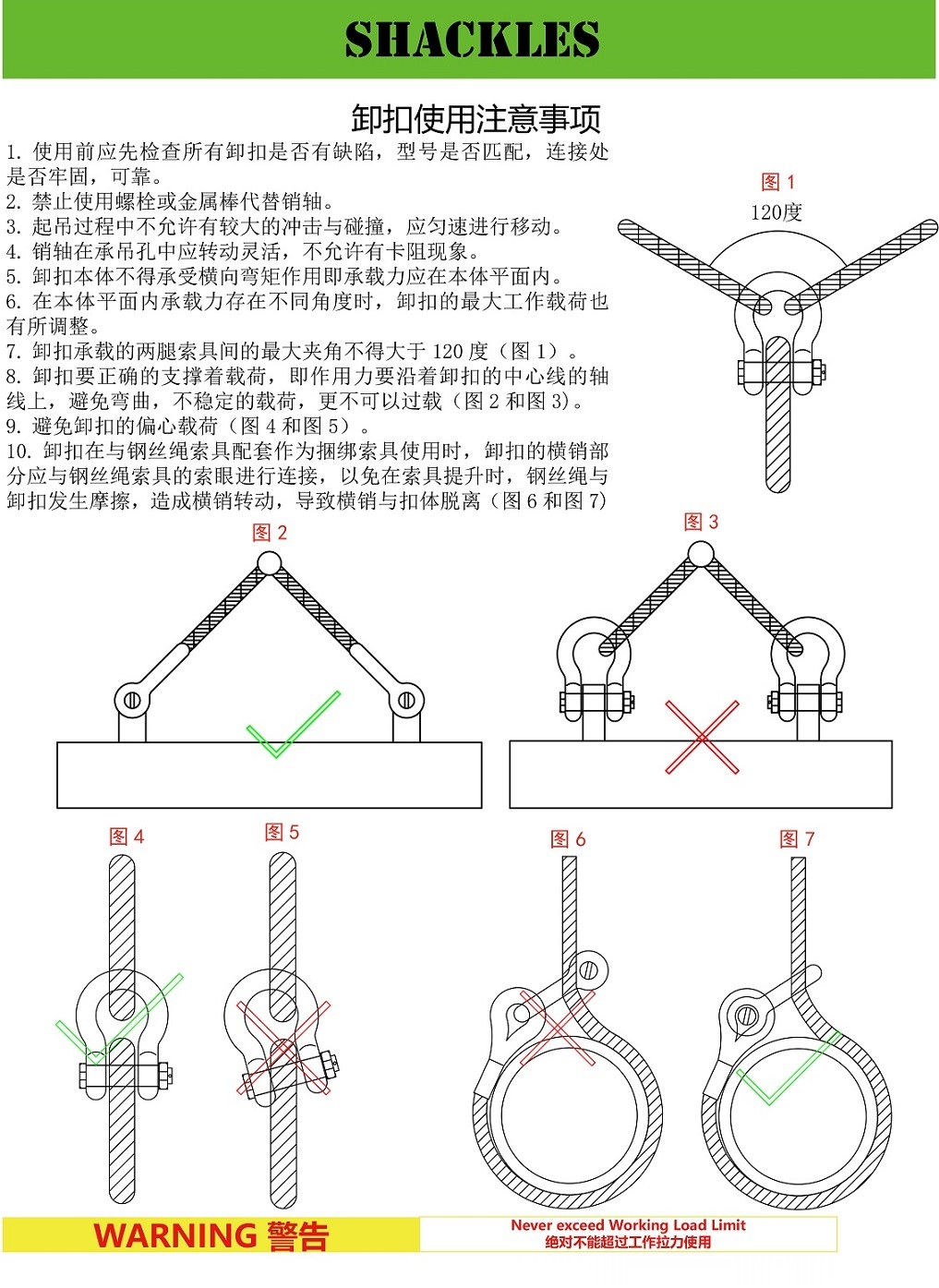

*不能超过工作负荷使用。

 目前国际卸扣分为M4、S6和T8三个级别，FEBOK INDUSTRIAL GROUP 费博克工业集团在中国执行GB/T25854-2010中国标准中规定T8级卸扣材质至少含有镍、铬、钼合金元素中的两种。8级卸扣主

要应用于风力发电、煤炭煤矿、船舶、石油、钢厂、化工等行业要求较严格的起重吊装中。T8级BW卸扣型号：T-BW2-3/8、T-BW2.5-7/16、

T-BW3.25-1/2、T-BW5-5/8、T-BW7-3/4、T-BW9.5-7/8、T-BW12.5-1、T-BW15-1 1/8、T-BW18-1 1/4、T-BW21-1 3/8、T-BW30-1 1/2、

T-BW40-1 3/4、T-BW50-2、T-BW85-2 1/2。

There are four types of T8 Shackles: T8 BW shackle, T8 BX shackle, T8 DW shackle and T8 DX shackle. The body and cross pin

are forged from high-strength alloy steel 35CrMo and heat treated。

T8 shackles have more than 20 specifications, including 3.25t, 5T, 7T, 9.5T, 12.5t, 15t, 18t, 21t, 30t, 40t, 50t, 80t, 110t,

140t, 175t, 200t, 1250t, 300t, 400t, 500t, 600t, 700T, 800t, 1000t, 1250t and 1500t. 3. 25t ~ 200t is die forging, and

above 200t is the combination of die forging and free forging. 3. The bearing capacity of 25t ~ 80t8 shackles is 25% ~ 75%

higher than that of S6 shackles of the same size; The bearing capacity of 80t ~ 1500t T8 shackle is 20% ~ 30% higher than

that of S6 shackle of the same size. The size of T8 shackles with the same load rating is reduced compared with S6 shackles,

but their rated load and function are not lost. They are mainly used in occasions with limited space。

The maximum test load of 25t ~ 300t is 2 times of the rated working load, the maximum test load of 400t ~ 2000t is 1.33

times of the rated working load, and the minimum breaking load is 4 times of the rated working load。

Carry out strict sampling and breaking test for each batch of products。

Conduct magnetic particle inspection。

Surface treatment: electro galvanizing, hot galvanizing and painting。
